K0553Magnets shallow pot NdFeB |
go back |
|
|
DescriptionMaterial:Housing, steel.
Magnetic core NdFeB.Version:Housing, electro zinc-plated.Note:Shielded system. With the permanent magnetic material NdFeB the attracive force increases by ca. 10-20 % compared with SmCo. Temperature range:max. 80°C.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

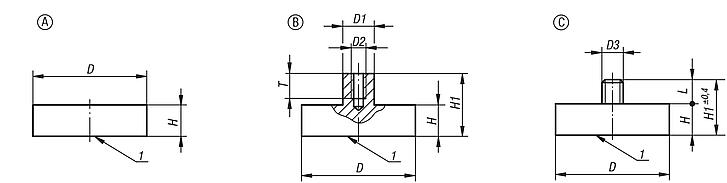

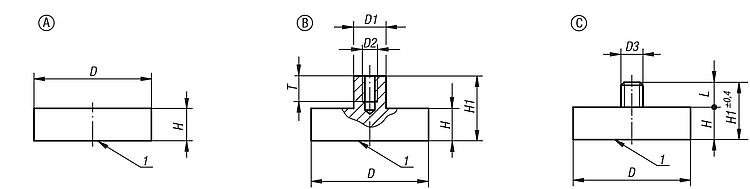

Drawings (total overview) |
Order No.
| Form | D | H | Magnetic
force
N | CAD | Acc. | Price | Order |
|---|

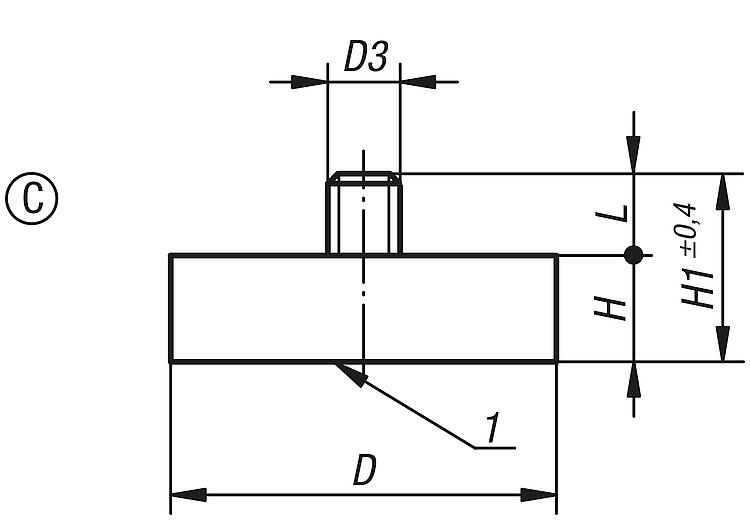

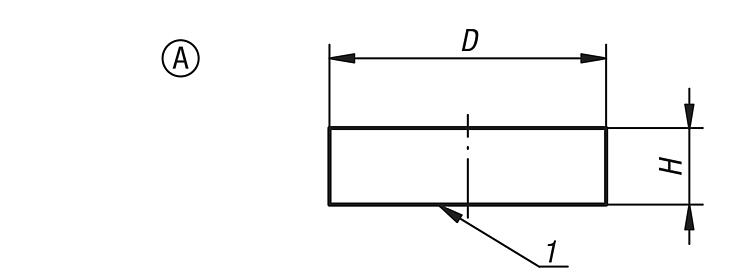

| K0553.01 | A | 6 ±0,15 | 4,5 | 5 |  | | 1.90 € | | | K0553.02 | A | 8 ±0,15 | 4,5 | 13 | | | 1.98 € | | | K0553.03 | A | 10 ±0,15 | 4,5 | 25 | | | 2.32 € | | | K0553.04 | A | 13 ±0,15 | 4,5 | 60 | | | 2.38 € | | | K0553.05 | A | 16 ±0,15 | 4,5 | 95 | | | 2.86 € | | | K0553.06 | A | 20 ±0,15 | 6 | 140 | | | 4.27 € | | | K0553.07 | A | 25 ±0,15 | 7 | 200 | | | 6.40 € | | | K0553.08 | A | 32 ±0,20 | 7 | 350 | | | 10.03 € | |
|
| Order No. | Form | D | D1 | D2 | H | H1 | T | Magnetic
force
N | CAD | Acc. | Price | Order |
|---|

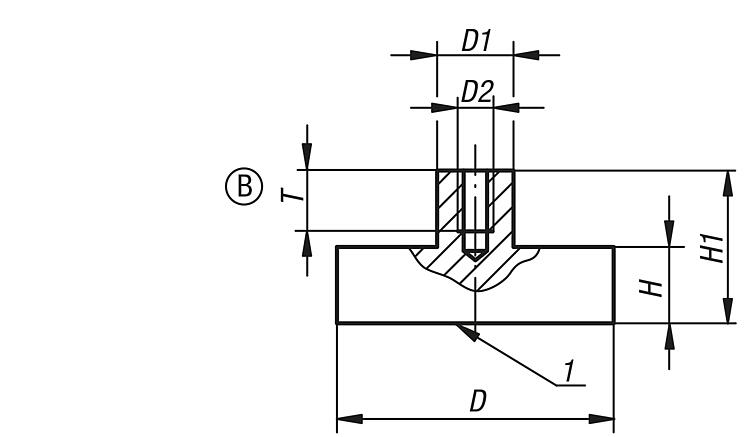

| K0553.11 | B | 6 ±0,15 | 6 | M3 | 4,5 | 11,5 | 6 | 5 | | | 2.38 € | | | K0553.12 | B | 8 ±0,15 | 6 | M3 | 4,5 | 11,5 | 7 | 13 | | | 2.45 € | | | K0553.13 | B | 10 ±0,15 | 6 | M3 | 4,5 | 11,5 | 7 | 25 | | | 2.83 € | | | K0553.14 | B | 13 ±0,15 | 6 | M3 | 4,5 | 11,5 | 6 | 60 | | | 2.96 € | | | K0553.15 | B | 16 ±0,15 | 6 | M4 | 4,5 | 11,5 | 7 | 95 | | | 3.44 € | | | K0553.16 | B | 20 ±0,15 | 8 | M4 | 6 | 13 | 9 | 140 | | | 5.82 € | | | K0553.17 | B | 25 ±0,15 | 8 | M4 | 7 | 14 | 9 | 200 | | | 8.67 € | | | K0553.18 | B | 32 ±0,20 | 10 | M5 | 7 | 15,5 | 10 | 350 | | | 11.69 € | | | K0553.19 | B | 40 ±0,2 | 10 | M6 | 8 | 18 | 13 | 670 | | | 15.94 € | | | K0553.20 | B | 47 ±0,2 | 12 | M6 | 9,2 | 20,5 | 13 | 750 | | | 24.42 € | | | K0553.21 | B | 50 ±0,2 | 15 | M8 | 10 | 22 | 13 | 1000 | | | 28.01 € | |
|
| Order No. | Form | D | D3 | H | H1 | L | Magnetic
force
N | CAD | Acc. | Price | Order |
|---|
| K0553.23 | C | 10 ±0,15 | M3 | 4,5 | 11,5 | 7 | 25 | | | 2.68 € | | | K0553.24 | C | 13 ±0,15 | M5 | 4,5 | 12,5 | 8 | 60 | | | 2.96 € | | | K0553.25 | C | 16 ±0,15 | M6 | 4,5 | 12,5 | 8 | 95 | | | 3.45 € | | | K0553.26 | C | 20 ±0,15 | M6 | 6 | 16 | 10 | 140 | | | 5.87 € | | | K0553.27 | C | 25 ±0,15 | M6 | 7 | 17 | 10 | 200 | | | 8.67 € | | | K0553.28 | C | 32 ±0,20 | M6 | 7 | 17 | 10 | 350 | | | 11.91 € | | | K0553.29 | C | 40 ±0,2 | M8 | 8 | 20 | 12 | 670 | | | 15.93 € | | | K0553.30 | C | 47 ±0,2 | M8 | 9,2 | 22,2 | 13 | 790 | | | 24.42 € | |
|
