K0611Shaft collars one-piece with clamping lever |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.
Stainless steel 1.4305. Version:Steel black oxidised.
Stainless steel bright.
Insert stainless-steel.Note:One-piece shaft collars surround the shaft with an equal distribution of the clamping force. This leads to a very precise fit and high retaining force without damaging the shaft.
The shaft tolerance should lie within h11.On request:Other dimensions.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

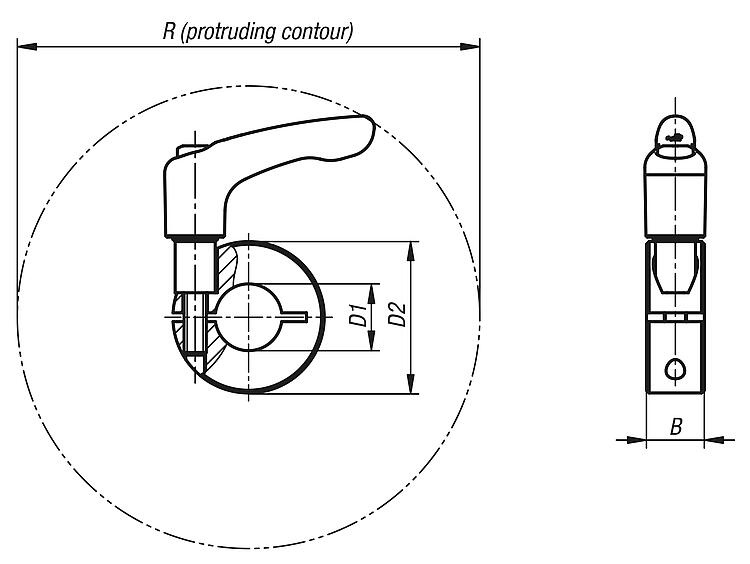

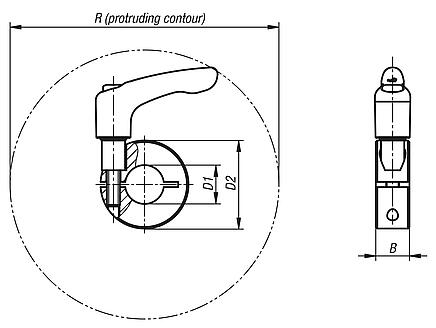

| Order No. | Main
material | B | D1
| D2 | R | CAD | Acc. | Price | Order |
|---|
| K0611.11001 | steel | 9 | 10 | 24 | 44,1 |  | | 10.09 € | | | K0611.11201 | steel | 11 | 12 | 28 | 90,4 | | | 10.33 € | | | K0611.11501 | steel | 13 | 15 | 34 | 105 | | | 11.15 € | | | K0611.11601 | steel | 13 | 16 | 34 | 105 | | | 11.41 € | | | K0611.11801 | steel | 13 | 18 | 36 | 105,7 | | | 11.89 € | | | K0611.12001 | steel | 15 | 20 | 40 | 103,8 | | | 12.43 € | | | K0611.12201 | steel | 15 | 22 | 42 | 104,2 | | | 12.43 € | | | K0611.12501 | steel | 15 | 25 | 45 | 104,8 | | | 13.15 € | | | K0611.12801 | steel | 15 | 28 | 48 | 106,8 | | | 13.15 € | | | K0611.13001 | steel | 15 | 30 | 54 | 112,6 | | | 15.09 € | | | K0611.14001 | steel | 15 | 40 | 60 | 113,2 | | | 17.15 € | | | K0611.15001 | steel | 19 | 50 | 78 | 150,2 | | | 31.82 € | | | K0611.11002 | stainless steel | 9 | 10 | 24 | 44,1 | | | 15.62 € | | | K0611.11202 | stainless steel | 11 | 12 | 28 | 90,4 | | | 15.84 € | | | K0611.11502 | stainless steel | 13 | 15 | 34 | 105 | | | 18.51 € | | | K0611.11602 | stainless steel | 13 | 16 | 34 | 105 | | | 18.72 € | | | K0611.11802 | stainless steel | 13 | 18 | 36 | 105,7 | | | 20.68 € | | | K0611.12002 | stainless steel | 15 | 20 | 40 | 103,8 | | | 23.97 € | | | K0611.12202 | stainless steel | 15 | 22 | 42 | 104,2 | | | 24.57 € | | | K0611.12502 | stainless steel | 15 | 25 | 45 | 104,8 | | | 25.27 € | | | K0611.12802 | stainless steel | 15 | 28 | 48 | 106,8 | | | 26.54 € | | | K0611.13002 | stainless steel | 15 | 30 | 54 | 112,6 | | | 27.84 € | | | K0611.14002 | stainless steel | 15 | 40 | 60 | 113,2 | | | 38.62 € | | | K0611.15002 | stainless steel | 19 | 50 | 78 | 150,2 | | | 76.65 € | |
