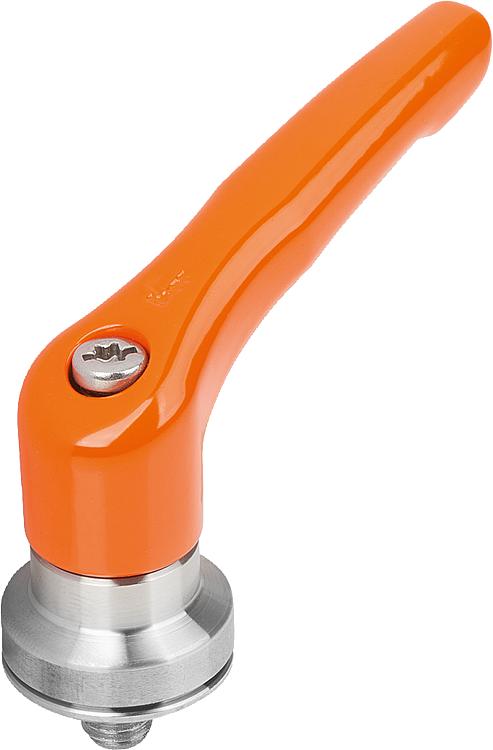

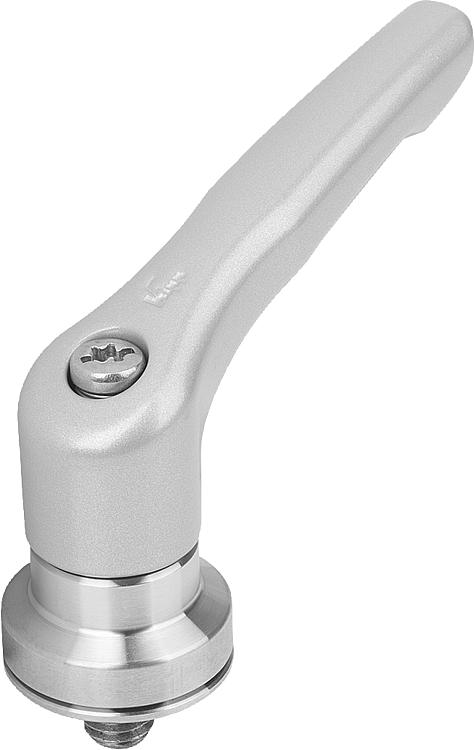

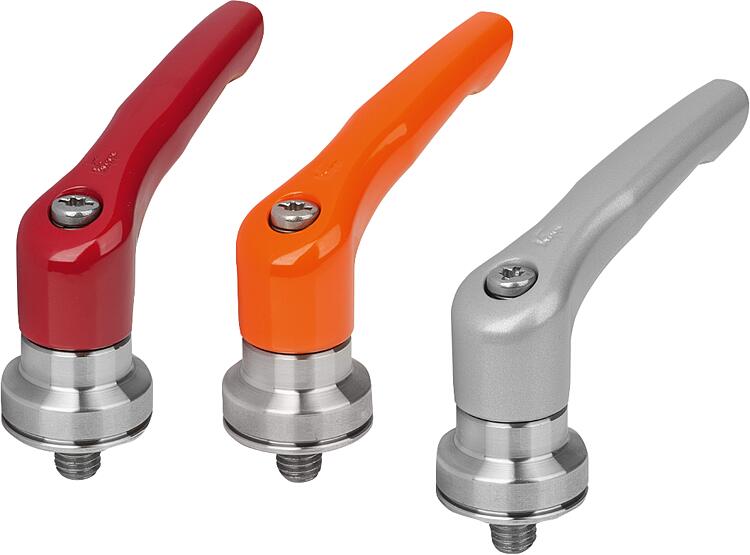

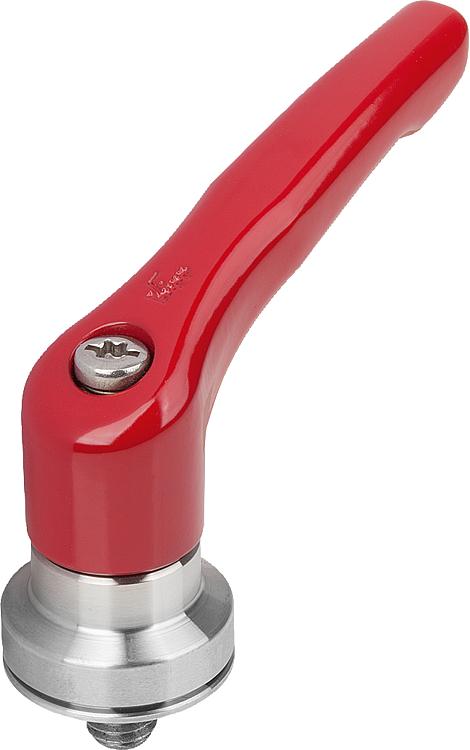

K1626Clamping levers, die-cast zinc with external thread and clamping... |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:By using clamping levers with integrated clamping force intensifier, the clamping force can be increased by up to 75% compared to standard clamping levers.
Furthermore, this product can also be used by persons with limited hand strength (e.g. in rehabilitation) to achieve comparable clamping forces with less effort. Less effort is also needed to loosen the clamping lever.
The increase in clamping force is achieved by the integral needle roller thrust bearing, which generates very low surface friction on a rigid contact surface during clamping. The hardened thrust washers are designed for high clamping forces and the bearing with its high load rating guarantees a long service life.
The clamped component is permanently protected by the large, stationary contact surface. A washer is no longer required.
Due to the modular construction many special designs are available.Material:Handle die-cast zinc DIN EN 12844.
Steel parts stainless steel 1.4305. Version:Handle powder-coated.
Steel parts bright.
Axial needle bearing with hardened and ground thrust washer.Note:Standard colours are:
orange RAL 2004, ruby red RAL 3003, silver metallic.Type of operation:In the default position, the handle is engaged with the threaded insert through a toothed ring. By lifting the handle, it can be repositioned and re-engaged in the toothed ring by spring force.Application:Machine, equipment and plant construction, rehabilitation sector.Assembly:The screw-in depth must be at least 2 x the thread diameter and the thread should be lubricated lightly during installation.Advantages:Significant increase of the clamping force with the same tightening torque.
High quality axial needle bearing with high load rating and long service life.
The component surface is protected by the stationary lower ring.On request:Other colours and thread lengths.Drawing reference:1) flat point DIN EN ISO 4753 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
colour | Surface finish
body | Size | X | D2
| H | H2 | H3 | H4 | A | A1 | B | L | CAD | Acc. | Price | Order |
|---|
| K1626.2082X10 | orange RAL 2004 | plastic-coated | 2 | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 10 |  | | 29.02 € | | | K1626.2082X20 | orange RAL 2004 | plastic-coated | 2 | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 20 | | | 29.02 € | | | K1626.2082X30 | orange RAL 2004 | plastic-coated | 2 | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 30 | | | 29.02 € | | | K1626.2082X40 | orange RAL 2004 | plastic-coated | 2 | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 40 | | | 29.46 € | | | K1626.3102X15 | orange RAL 2004 | plastic-coated | 3 | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 15 | | | 30.24 € | | | K1626.3102X30 | orange RAL 2004 | plastic-coated | 3 | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 30 | | | 30.24 € | | | K1626.3102X40 | orange RAL 2004 | plastic-coated | 3 | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 40 | | | 30.78 € | | | K1626.3102X50 | orange RAL 2004 | plastic-coated | 3 | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 50 | | | 30.78 € | | | K1626.4102X20 | orange RAL 2004 | plastic-coated | 4 | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 20 | | | 32.68 € | | | K1626.4102X30 | orange RAL 2004 | plastic-coated | 4 | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 30 | | | 32.68 € | | | K1626.4102X40 | orange RAL 2004 | plastic-coated | 4 | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 40 | | | 33.98 € | | | K1626.4102X50 | orange RAL 2004 | plastic-coated | 4 | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 50 | | | 33.98 € | | | K1626.5122X20 | orange RAL 2004 | plastic-coated | 5 | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 20 | | | 37.58 € | | | K1626.5122X30 | orange RAL 2004 | plastic-coated | 5 | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 30 | | | 37.58 € | | | K1626.5122X40 | orange RAL 2004 | plastic-coated | 5 | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 40 | | | 39.68 € | | | K1626.5122X50 | orange RAL 2004 | plastic-coated | 5 | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 50 | | | 39.68 € | | | K1626.20827X10 | ruby red RAL3003 | plastic-coated | 2 | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 10 | | | 29.02 € | | | K1626.20827X20 | ruby red RAL3003 | plastic-coated | 2 | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 20 | | | 29.02 € | | | K1626.20827X30 | ruby red RAL3003 | plastic-coated | 2 | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 30 | | | 29.02 € | | | K1626.20827X40 | ruby red RAL3003 | plastic-coated | 2 | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 40 | | | 29.46 € | | | K1626.31027X15 | ruby red RAL3003 | plastic-coated | 3 | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 15 | | | 30.24 € | | | K1626.31027X30 | ruby red RAL3003 | plastic-coated | 3 | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 30 | | | 30.24 € | | | K1626.31027X40 | ruby red RAL3003 | plastic-coated | 3 | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 40 | | | 30.78 € | | | K1626.31027X50 | ruby red RAL3003 | plastic-coated | 3 | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 50 | | | 30.78 € | | | K1626.41027X20 | ruby red RAL3003 | plastic-coated | 4 | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 20 | | | 32.68 € | | | K1626.41027X30 | ruby red RAL3003 | plastic-coated | 4 | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 30 | | | 32.68 € | | | K1626.41027X40 | ruby red RAL3003 | plastic-coated | 4 | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 40 | | | 33.98 € | | | K1626.41027X50 | ruby red RAL3003 | plastic-coated | 4 | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 50 | | | 33.98 € | | | K1626.51227X20 | ruby red RAL3003 | plastic-coated | 5 | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 20 | | | 37.58 € | | | K1626.51227X30 | ruby red RAL3003 | plastic-coated | 5 | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 30 | | | 37.58 € | | | K1626.51227X40 | ruby red RAL3003 | plastic-coated | 5 | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 40 | | | 39.68 € | | | K1626.51227X50 | ruby red RAL3003 | plastic-coated | 5 | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 50 | | | 39.68 € | | | K1626.2083X10 | silver metallic | plastic-coated | 2 | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 10 | | | 29.02 € | | | K1626.2083X20 | silver metallic | plastic-coated | 2 | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 20 | | | 29.02 € | | | K1626.2083X30 | silver metallic | plastic-coated | 2 | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 30 | | | 29.02 € | | | K1626.2083X40 | silver metallic | plastic-coated | 2 | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 40 | | | 29.46 € | | | K1626.3103X15 | silver metallic | plastic-coated | 3 | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 15 | | | 30.24 € | | | K1626.3103X30 | silver metallic | plastic-coated | 3 | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 30 | | | 30.24 € | | | K1626.3103X40 | silver metallic | plastic-coated | 3 | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 40 | | | 30.78 € | | | K1626.3103X50 | silver metallic | plastic-coated | 3 | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 50 | | | 30.78 € | | | K1626.4103X20 | silver metallic | plastic-coated | 4 | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 20 | | | 32.68 € | | | K1626.4103X30 | silver metallic | plastic-coated | 4 | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 30 | | | 32.68 € | | | K1626.4103X40 | silver metallic | plastic-coated | 4 | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 40 | | | 33.98 € | | | K1626.4103X50 | silver metallic | plastic-coated | 4 | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 50 | | | 33.98 € | | | K1626.5123X20 | silver metallic | plastic-coated | 5 | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 20 | | | 37.58 € | | | K1626.5123X30 | silver metallic | plastic-coated | 5 | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 30 | | | 37.58 € | | | K1626.5123X40 | silver metallic | plastic-coated | 5 | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 40 | | | 39.68 € | | | K1626.5123X50 | silver metallic | plastic-coated | 5 | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 50 | | | 39.68 € | |
