K0358Centring clamps with ball or hexagon segments |
go back |
|
|
DescriptionMaterial:Body 1.2842.
Ball and hex segments 1.4112.
Tension spring 1.4310.Version:Body hardened and black oxidised.
Ball and hex segments hardened and ground.Technical data:Repetitive accuracy ±0.025
Concentric accuracy ±0.05Application:To position and centre existing bores on the machining surface.Advantages:- Precise self-centring.
- Distortion free clamping.
- Large spread range.

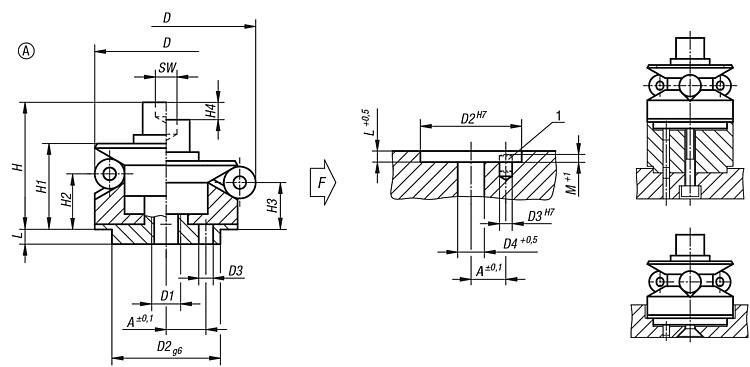

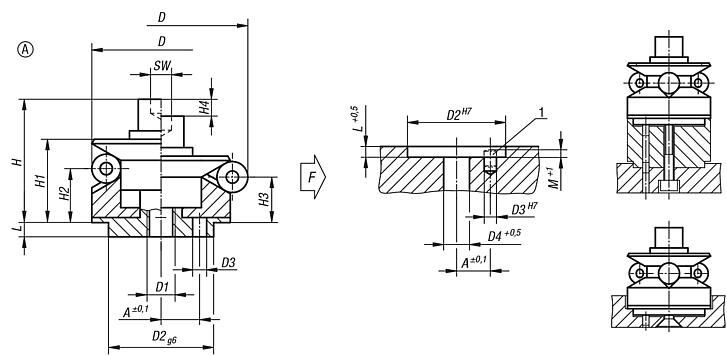

- Low overall height.Drawing reference:Form A:
With balls for holes where light marking is acceptable.

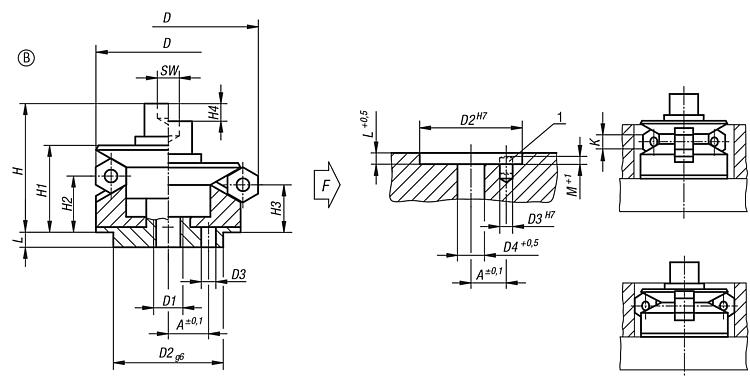

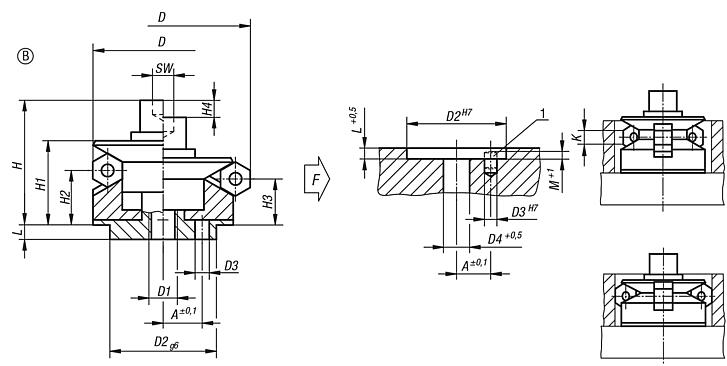

Form B:
With hexagons for sensitive hole surfaces.
1) Mounting aid:
pin to accurately position the mandrel segments. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

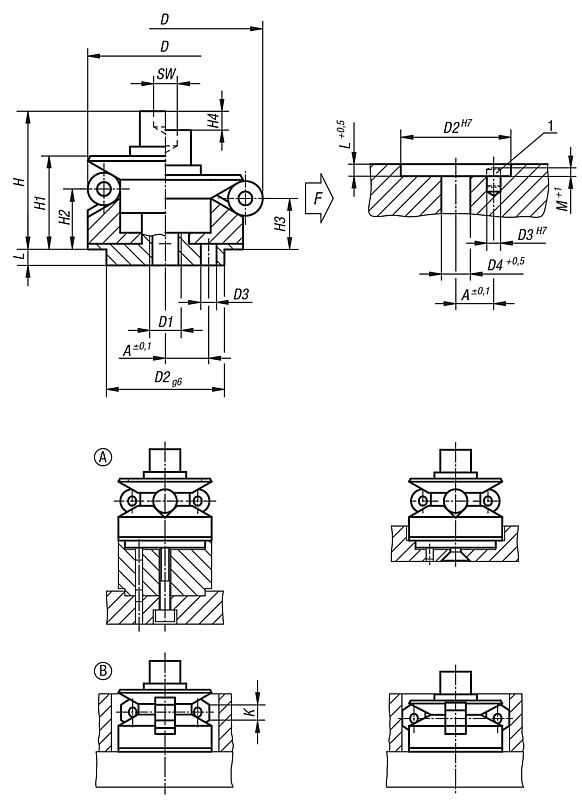

Drawings (total overview) |
Order No.
| Form | A | D max. | D
min. | D1 | D2 | D3 | D4 | H | H1 | H2 | H3 | H4 | L | M | SW | Ball Ø | No. of
balls | Clamping
force
max. kN | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| K0358.101203 | A | 3,5 | 14,2 | 11,7 | M4 | 10 | 1,5 | 4,3 | 15 | 10 | 4,2 | 3 | 1,5 | 3,5 | 2,5 | 3 | 2,5 | 3 | 0,5 | 5 |  | | 255.20 € | | | K0358.101504 | A | 4,5 | 18,5 | 14,5 | M4 | 12 | 2 | 4,3 | 19,5 | 14,5 | 9,8 | 8,6 | 2,3 | 5,5 | 3 | 3 | 4 | 3 | 3,5 | 5 | | | 270.60 € | | | K0358.101905 | A | 5,5 | 22,5 | 18,5 | M5 | 15 | 2,5 | 5,3 | 23,5 | 16,5 | 11,6 | 10,4 | 2,3 | 7,5 | 3 | 4 | 4 | 3 | 4 | 10 | | | 300.30 € | | | K0358.102306 | A | 7 | 26,5 | 22,5 | M6 | 20 | 3 | 6,4 | 28,8 | 19,8 | 14,2 | 13 | 2,3 | 6 | 4 | 5 | 4 | 3 | 4,5 | 17 | | | 334.40 € | | | K0358.102706 | A | 7 | 30,5 | 26,5 | M6 | 20 | 3 | 6,4 | 28,8 | 19,8 | 14,2 | 13 | 2,3 | 6 | 4,5 | 5 | 4 | 3 | 4,5 | 17 | | | 367.40 € | | | K0358.103106 | A | 9 | 38,5 | 30,5 | M6 | 25 | 4 | 6,4 | 32,7 | 23,1 | 14,2 | 11,9 | 4,6 | 7 | 4,5 | 5 | 8 | 3 | 4,5 | 17 | | | 401.50 € | | | K0358.103908 | A | 11 | 46,5 | 38,5 | M8 | 30 | 4 | 8,4 | 39,2 | 27,2 | 17,8 | 15,5 | 4,6 | 7,5 | 4,5 | 6 | 8 | 6 | 6,5 | 43 | | | 440.00 € | | | K0358.104708 | A | 11 | 54,5 | 46,5 | M8 | 30 | 4 | 8,4 | 39,2 | 27,2 | 18 | 15,7 | 4,6 | 7,5 | 4,5 | 6 | 8 | 6 | 6,5 | 43 | | | 550.00 € | | | K0358.105510 | A | 15 | 70,5 | 54,5 | M10 | 45 | 5 | 10,5 | 54,6 | 40,6 | 23,7 | 19,1 | 9,3 | 9 | 5,5 | 8 | 16 | 6 | 8 | 79 | | | 585.20 € | | | K0358.107112 | A | 17 | 86,5 | 70,5 | M12 | 60 | 5 | 13 | 63,1 | 46,1 | 28,3 | 23,7 | 9,3 | 10 | 5,5 | 10 | 16 | 6 | 10 | 141 | | | 629.20 € | | | K0358.108712 | A | 25 | 102,5 | 86,5 | M16 | 60 | 5 | 17 | 73 | 51 | 30,2 | 25,7 | 9,3 | 10 | 5,5 | 14 | 16 | 6 | 12,5 | 354 | | | 694.10 € | |
|
Order No.
| Form | A
| D
min. | D
max. | D1 | D2 | D3 | D4 | H | H1 | H2 | H3 | H4 | L | M | K | SW | No. of
hex | Clamping
force
max. kN | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| K0358.201504 | B | 4,5 | 14,5 | 18,5 | M4 | 12 | 2 | 4,3 | 19,5 | 14,5 | 9,8 | 8,6 | 2,3 | 5,5 | 3 | 4 | 3 | 3 | 3,5 | 5 | | | 315.70 € | | | K0358.201905 | B | 5,5 | 18,5 | 22,5 | M5 | 15 | 2,5 | 5,3 | 23,5 | 16,5 | 11,6 | 10,4 | 2,3 | 7,5 | 3 | 4 | 4 | 3 | 4 | 10 | | | 348.70 € | | | K0358.202306 | B | 7 | 22,5 | 26,5 | M6 | 20 | 3 | 6,4 | 28,8 | 19,8 | 14,2 | 13 | 2,3 | 6 | 4 | 4 | 5 | 3 | 4,5 | 17 | | | 383.90 € | | | K0358.202706 | B | 7 | 26,5 | 30,5 | M6 | 20 | 3 | 6,4 | 28,8 | 19,8 | 14,2 | 13 | 2,3 | 6 | 4,5 | 4 | 5 | 3 | 4,5 | 17 | | | 414.70 € | | | K0358.203106 | B | 9 | 30,5 | 38,5 | M6 | 25 | 4 | 6,4 | 32,7 | 23,1 | 14,2 | 11,9 | 4,6 | 7 | 4,5 | 8 | 5 | 3 | 4,5 | 17 | | | 449.90 € | | | K0358.203908 | B | 11 | 38,5 | 46,5 | M8 | 30 | 4 | 8,4 | 39,2 | 27,2 | 17,8 | 15,5 | 4,6 | 7,5 | 4,5 | 8 | 6 | 6 | 6,5 | 43 | | | 487.30 € | | | K0358.204708 | B | 11 | 46,5 | 54,5 | M8 | 30 | 4 | 8,4 | 39,2 | 27,2 | 18 | 15,7 | 4,6 | 7,5 | 4,5 | 8 | 6 | 6 | 6,5 | 43 | | | 624.80 € | | | K0358.205510 | B | 15 | 54,5 | 70,5 | M10 | 45 | 5 | 10,5 | 54,6 | 40,6 | 23,7 | 19,1 | 9,3 | 9 | 5,5 | 16 | 8 | 6 | 8 | 79 | | | 656.70 € | | | K0358.207112 | B | 17 | 70,5 | 86,5 | M12 | 60 | 5 | 13 | 63,1 | 46,1 | 28,3 | 23,7 | 9,3 | 10 | 5,5 | 16 | 10 | 6 | 10 | 141 | | | 698.50 € | | | K0358.208712 | B | 25 | 86,5 | 102,5 | M16 | 60 | 5 | 17 | 73 | 51 | 30,2 | 25,7 | 9,3 | 10 | 5,5 | 16 | 14 | 6 | 12,5 | 354 | | | 764.50 € | |
|
