Side clamps

go back

Products
- Operating parts | standard elements
  - Clamping elements
    - Side clamp
      - Side clamps

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:This is a quick-action side clamp where workpieces are clamped by rotating a cam wheel which exerts pressure on the swivel jaw, simultaneously producing a positive down force.

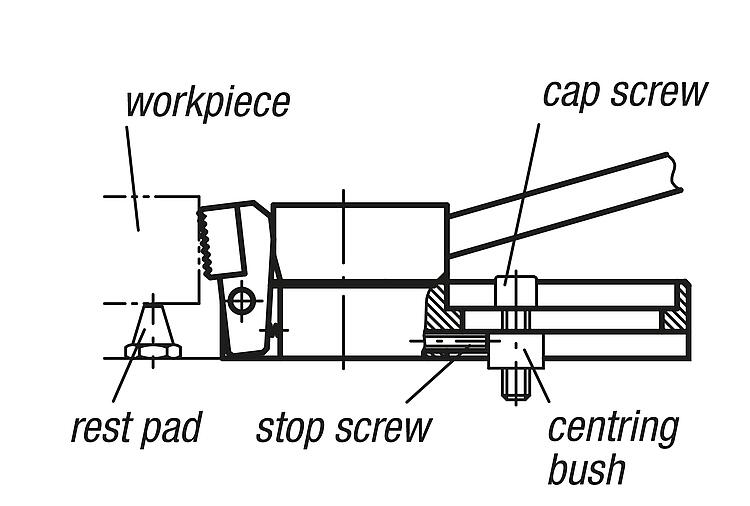

Using the stop screw and centring bush (see diagram), the side clamp can be mounted and positioned on a modular grid system.

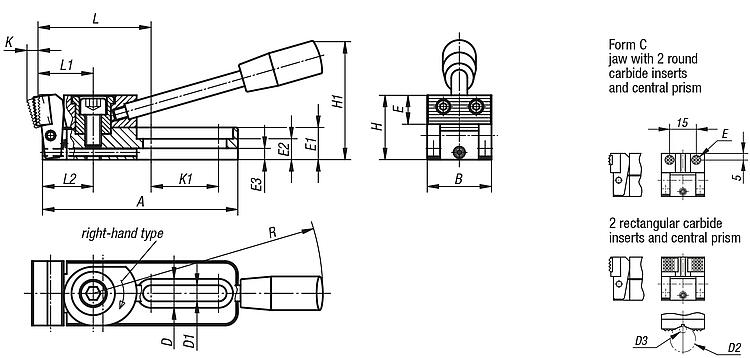

The versions K0034.006010, K0034.006015, K0034.006030 and K0034.006035 have 2 round carbide inserts.Clamping force:K0034.006... = 3800 N
K0034.010... = 7200 NSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0034 Side clamps

257 kB

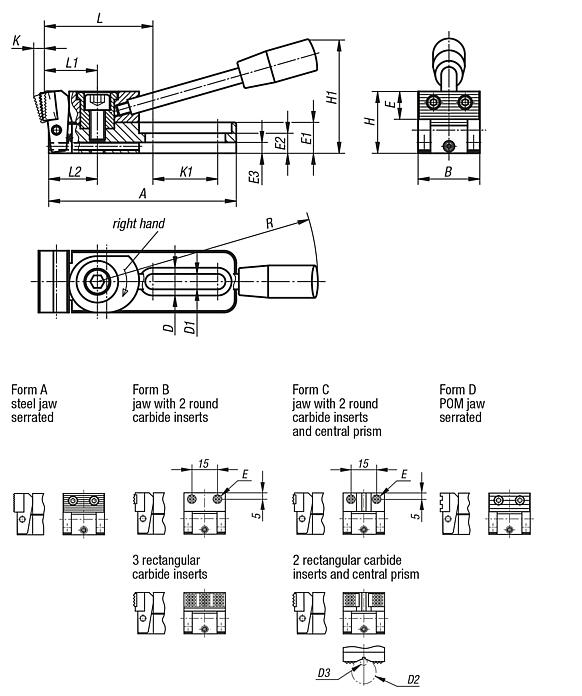

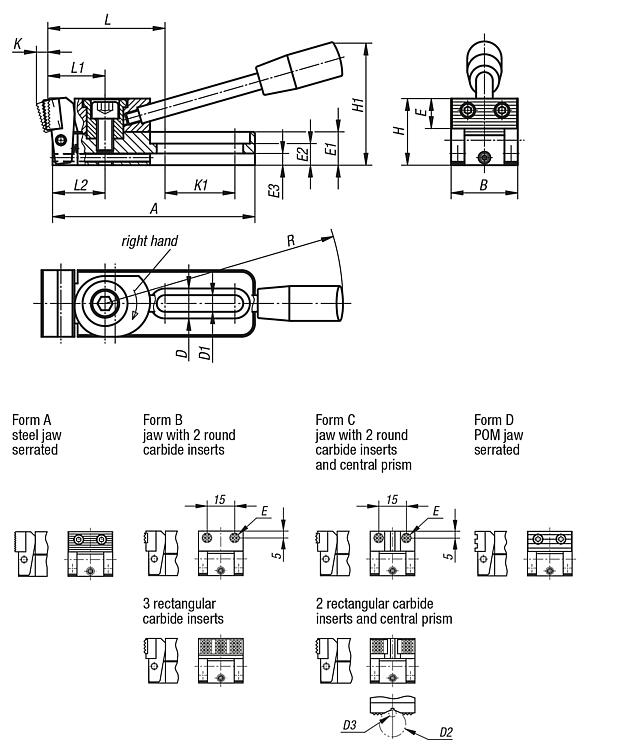

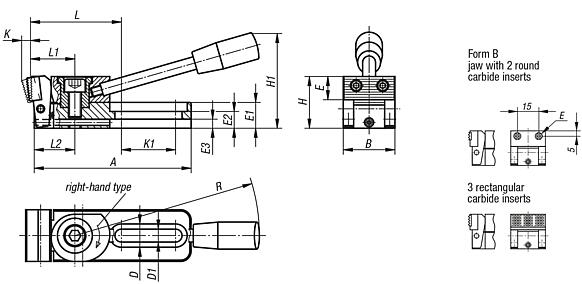

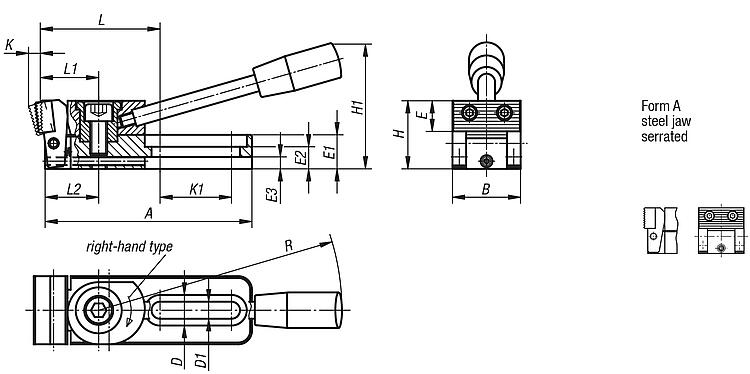

Drawings (total overview)

Side clamps

More information

Drawings

Item selection/filter

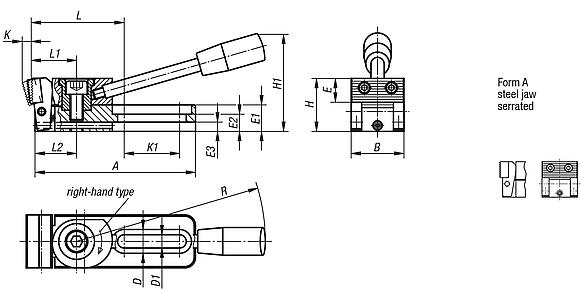

Order No.	Form	Version 1	A	B	D	D1	E	E1	E2	E3	H	H1	K	K1	L	L1	L2	R	F=Retaining force N	Price
K0034.006005	A	right	78	25	12	6,2	11	12	8	4	25	45	4	26	46,5	22	20	110	3800	143.47 €
K0034.010005	A	right	121,5	40	18	10,2	18	20	13	7	40	74	6	42	71	35	31,5	143	7200	205.23 €
K0034.006025	A	left	78	25	12	6,2	11	12	8	4	25	45	4	26	46,5	22	20	110	3800	143.47 €
K0034.010025	A	left	121,5	40	18	10,2	18	20	13	7	40	74	6	42	71	35	31,5	143	7200	205.23 €

Side clamps

More information

Drawings

Item selection/filter

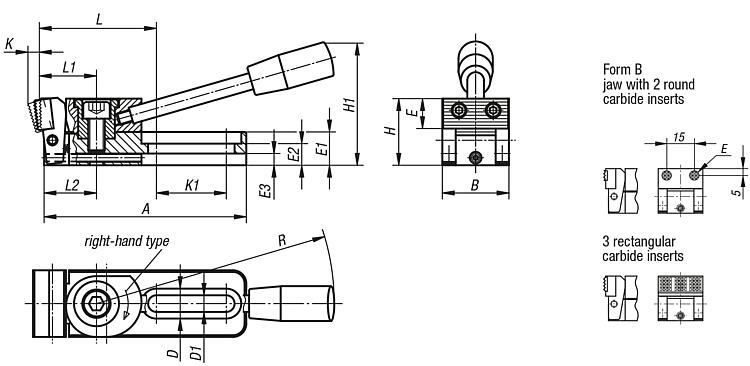

Order No.	Form	Version 1	A	B	D	D1	E	E1	E2	E3	H	H1	K	K1	L	L1	L2	R	F=Retaining force N	Price
K0034.006010	B	right	78	25	12	6,2	ø8	12	8	4	24	45	3,5	26	46,5	22	20	110	3800	143.64 €
K0034.010010	B	right	121,5	40	18	10,2	12,7	20	13	7	39	74	5,5	42	73	35	31,5	143	7200	235.22 €
K0034.006030	B	left	78	25	12	6,2	ø8	12	8	4	24	45	3,5	26	46,5	22	20	110	3800	143.64 €
K0034.010030	B	left	121,5	40	18	10,2	12,7	20	13	7	39	74	5,5	42	73	35	31,5	143	7200	235.22 €

Side clamps

More information

Drawings

Item selection/filter

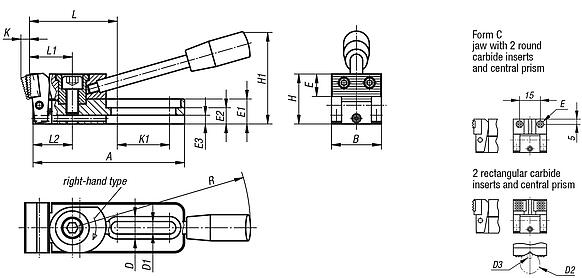

Order No.	Form	Version 1	A	B	D	D1	D2 max.	D3 min.	E	E1	E2	E3	H	H1	K	K1	L	L1	L2	R	F=Retaining force N	Price
K0034.006015	C	right	78	25	12	6,2	9,5	2,5	ø8	12	8	4	24	45	3,5	26	46,5	22	20	110	3800	148.51 €
K0034.010015	C	right	121,5	40	18	10,2	27	4,5	12,7	20	13	7	39	74	5,5	42	73	35	31,5	143	7200	233.56 €
K0034.006035	C	left	78	25	12	6,2	9,5	2,5	ø8	12	8	4	24	45	3,5	26	46,5	22	20	110	3800	148.29 €
K0034.010035	C	left	121,5	40	18	10,2	27	4,5	12,7	20	13	7	39	74	5,5	42	73	35	31,5	143	7200	233.56 €

Side clamps

More information

Drawings

Item selection/filter

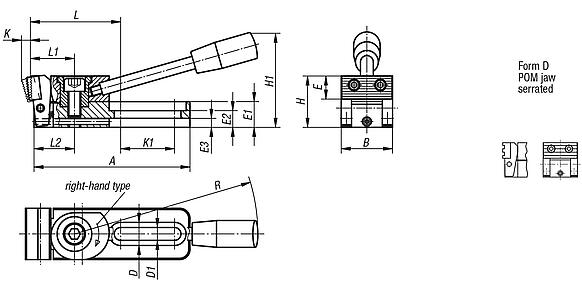

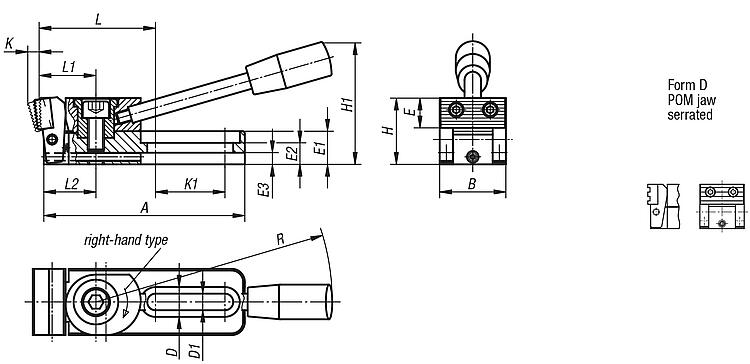

Order No.	Form	Version 1	A	B	D	D1	E	E1	E2	E3	H	H1	K	K1	L	L1	L2	R	F=Retaining force N	Price
K0034.006020	D	right	78	25	12	6,2	11	12	8	4	25	45	4	26	46,5	22	20	110	3800	143.64 €
K0034.010020	D	right	121,5	40	18	10,2	18	20	13	7	40	74	6	42	70,5	35	31,5	143	7200	206.88 €
K0034.006040	D	left	78	25	12	6,2	11	12	8	4	25	45	4	26	46,5	22	20	110	3800	146.30 €
K0034.010040	D	left	121,5	40	18	10,2	18	20	13	7	40	74	6	42	70,5	35	31,5	143	7200	206.88 €
