Item description/product images

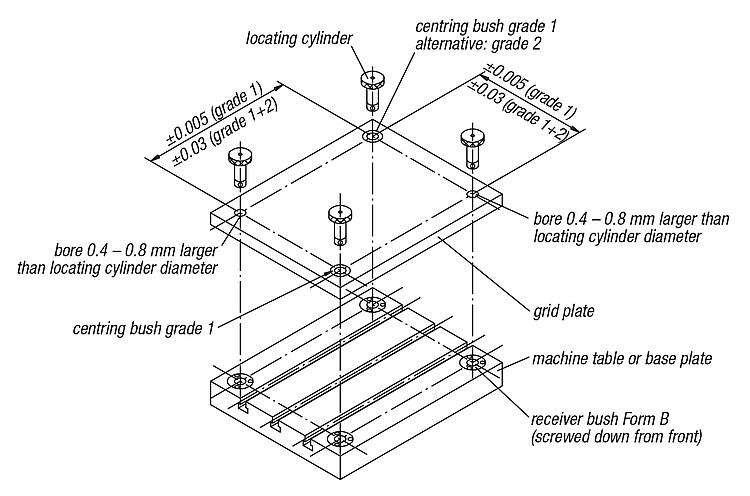

DescriptionMaterial:Ball bearing steelVersion:Hardened, black oxidised.Note:By a centre distance tolerance of ±0.005 mm and two grade I centring bushes a repeat accuracy of ±0.013 mm is possible.
By a centre distance tolerance of ±0.03 mm and one grade I and one grade II centring bush a repeat accuracy of 0.04 mm is possible.
The centring bushes are pressed into the receiver holes of the tooling plates using a light pressure.
For further details see “General information”.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0936 Centring bushes

247 kB

Locating and clamping system, mechanical

378 kB

Drawings

Item selection/filter

Order No.	Version 1	D	T=tolerance	D1	L	Bore size for centring bush Ø +0.01	Price
K0936.113013	grade I	13	+0,005 - +0,018	19,04	13	19,016	15.33 €
K0936.113020	grade I	13	+0,005 - +0,018	19,04	20	19,016	16.00 €
K0936.116020	grade I	16	+0,005 - +0,018	25,042	20	25,016	15.33 €
K0936.116025	grade I	16	+0,005 - +0,018	25,042	25	25,016	16.00 €
K0936.120020	grade I	20	+0,005 - +0,018	35,042	20	35,018	16.65 €
K0936.120025	grade I	20	+0,005 - +0,018	35,042	25	35,018	18.88 €
K0936.125020	grade I	25	+0,005 - +0,018	35,042	20	35,018	16.65 €
K0936.125025	grade I	25	+0,005 - +0,018	35,042	25	35,018	18.88 €
K0936.130020	grade I	30	+0,005 - +0,018	45,042	20	45,018	22.72 €
K0936.130025	grade I	30	+0,005 - +0,018	45,042	25	45,018	24.96 €
K0936.135020	grade I	35	+0,005 - +0,018	45,042	20	45,018	22.72 €
K0936.135025	grade I	35	+0,005 - +0,018	45,042	25	45,018	24.96 €
K0936.135040	grade I	35	+0,005 - +0,018	45,042	40	45,018	26.96 €
K0936.135050	grade I	35	+0,005 - +0,018	45,042	50	45,018	28.61 €
K0936.150020	grade I	50	+0,005 - +0,018	63,546	20	63,521	43.38 €
K0936.150040	grade I	50	+0,005 - +0,018	63,546	40	63,521	49.62 €
K0936.150050	grade I	50	+0,005 - +0,018	63,546	50	63,521	53.29 €
K0936.213013	grade II	13	+0,025 - +0,050	19,04	13	19,016	15.33 €
K0936.213020	grade II	13	+0,025 - +0,050	19,04	20	19,016	16.00 €
K0936.216020	grade II	16	+0,025 - +0,050	25,042	20	25,016	15.33 €
K0936.216025	grade II	16	+0,025 - +0,050	25,042	25	25,016	16.00 €
K0936.220020	grade II	20	+0,025 - +0,050	35,042	20	35,018	16.65 €
K0936.220025	grade II	20	+0,025 - +0,050	35,042	25	35,018	18.88 €
K0936.225020	grade II	25	+0,025 - +0,050	35,042	20	35,018	16.65 €
K0936.225025	grade II	25	+0,025 - +0,050	35,042	25	35,018	18.88 €
K0936.230020	grade II	30	+0,025 - +0,050	45,042	20	45,018	22.72 €
K0936.235025	grade II	35	+0,025 - +0,050	45,042	25	45,018	24.96 €
K0936.235040	grade II	35	+0,025 - +0,050	45,042	40	45,018	26.96 €
K0936.235050	grade II	35	+0,025 - +0,050	45,042	50	45,018	28.61 €
K0936.250025	grade II	50	+0,025 - +0,050	63,546	25	63,521	46.06 €
K0936.250050	grade II	50	+0,025 - +0,050	63,546	50	63,521	53.29 €
