Item description/product images

DescriptionMaterial:Carbon steel.Version:Tempered, black oxidised.

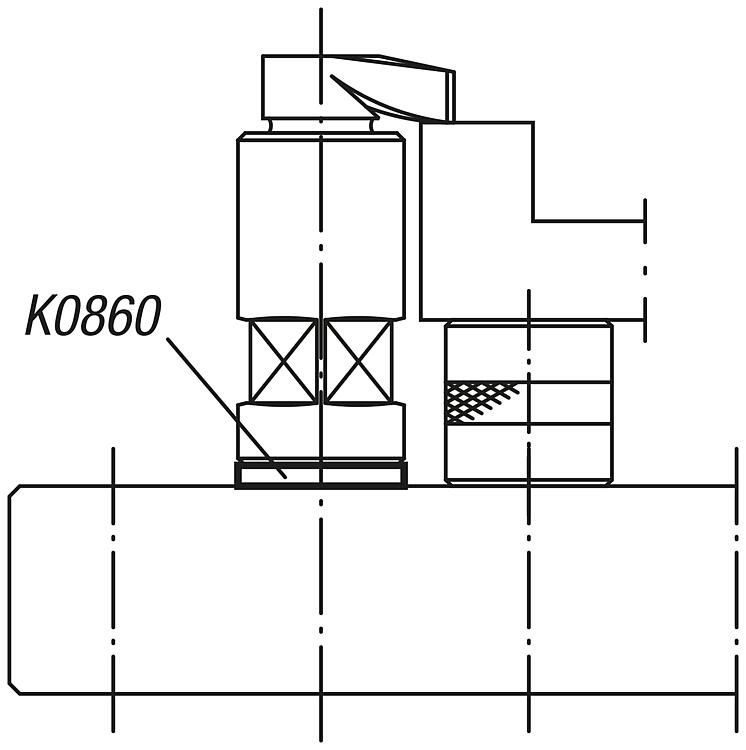

Contact faces ground.Note:The spacing washer is used to alter the clamping range of hook clamps and hook holders. When a spacing washer is inserted between the base and the hook holder or riser cylinder it prevents damage to the support face.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0860 Spacing washers

175 kB

Drawings

Item selection/filter

Order No.	D1	D2	H	Price
K0860.08003	9	24	3	10.43 €
K0860.08005	9	24	5	9.39 €
K0860.08008	9	24	8	9.77 €
K0860.12001	12,5	40	1	9.86 €
K0860.12003	12,5	40	3	10.33 €
K0860.12005	12,5	40	5	10.76 €
K0860.16001	16,5	50	1	12.13 €
K0860.16003	16,5	50	3	12.78 €
K0860.16005	16,5	50	5	13.40 €
K0860.16105	16,5	60	5	15.15 €
