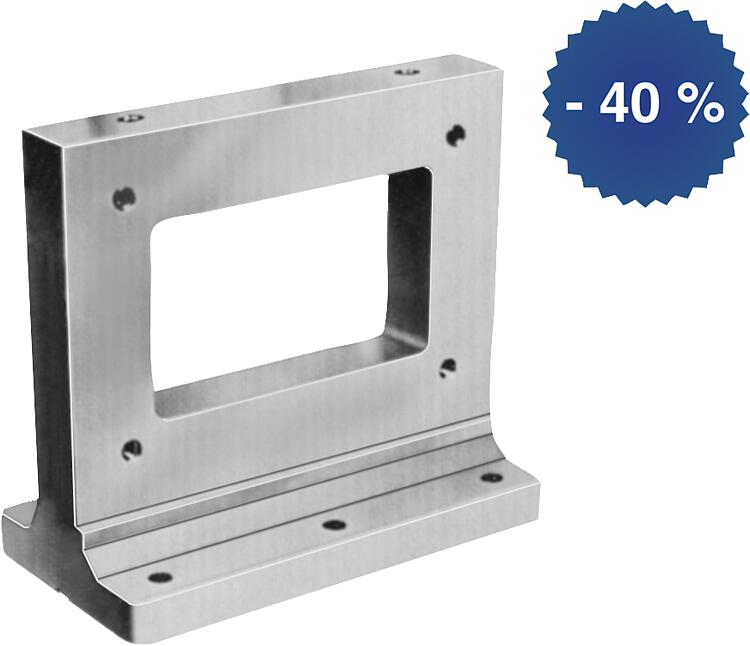

Tombstones window frame

go back

Products
- Sale
  - Tombstones window frame

Item description/product images

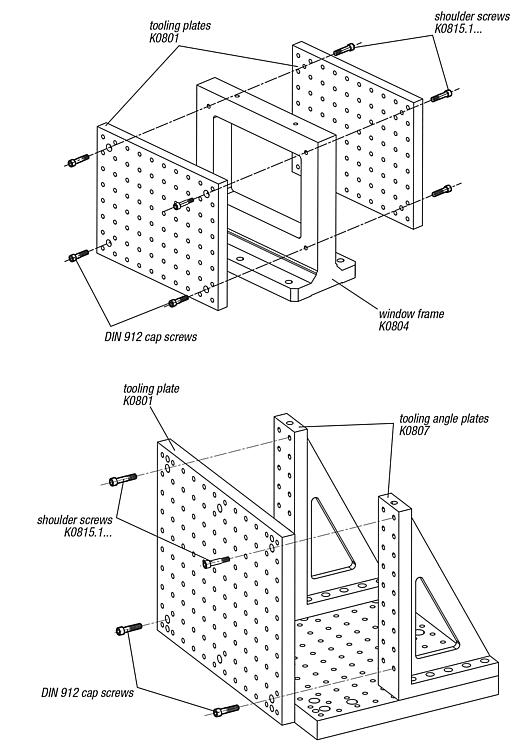

DescriptionMaterial:GJL 300.Version:Reference surfaces precision machinedNote:Tooling plates K0801 can be positioned and mounted on both sides of the window frame, permitting economical fixture changes. The window frames are positioned using centring pins K0856 and T-slot keys.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0804 Tombstones window frame

264 kB

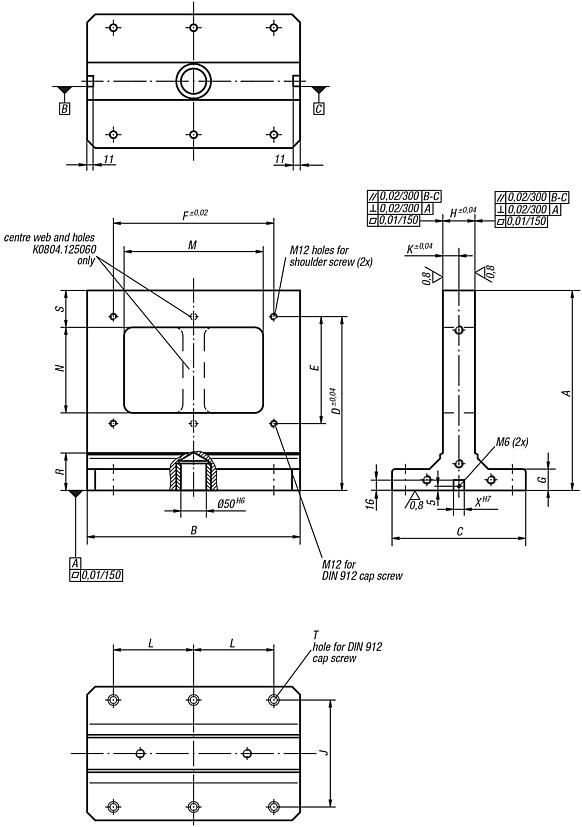

Drawings

Item selection/filter

Order No.	A	B	C	D	E	F	G	H	J	K	L	M	N	R	S	T	X	weight ca. kg	Status	CAD	Acc.	Price	Order
K0804.124050	474	498	250	425	300	400	40	70	200	35	200	360	260	70	69	M12	14	112,6	expiring			1,166.13 €
K0804.125060	574	598	300	525	400	500	50	70	200	35	200	460	360	75	70	M16	18	153	expiring			1,552.95 €
